Centric Type Butterfly Valve

Application:

The Butterfly valves designed in accordance with IS 13095:1991 (BS 5155) and used for mainly water and oil works purposes. Butterfly valves are commonly used as control valves in applications where the pressure drops required of the valves are relatively low. Butterfly valves can be used in applications as either shutoff valves (on/off service) or as throttling valves (for flow or pressure control). As shutoff valves, butterfly valves offer excellent performance within the range of their pressure rating. Typical uses would include isolation of equipment, fill/drain systems, bypass systems and other like applications where the only criteria for control of the flow/pressure is that it be on or off.

Codes and Standards:

1. Design and Manufacturing : API 609, BS 5155, IS 13095

2. Valve face to face dimensions : ISO 5211 Part II

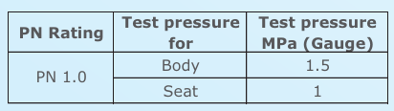

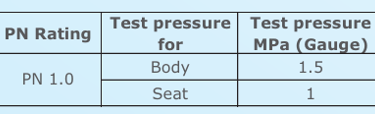

3. Valve Inspection and Testing : API 598

4. Flange Standard : ANSI 150, DIN PN6/PN10/PN16, BS 10 Tab D & E IS 6392 NP 0.6/1.0/1.6

5. Size Range : 40mm TO 400mm

Technical Specifications:

1. Valve type : Centric disc design Butterfly valve with a single piece

2. Seat type : Replaceable for sizes 40mm to 400mm

3. Pressure Operating : 40 NB to 400 NB - PN16 (max) 0

4. Operating Temperature range : -25oC to 200 C (Depending on MOC)

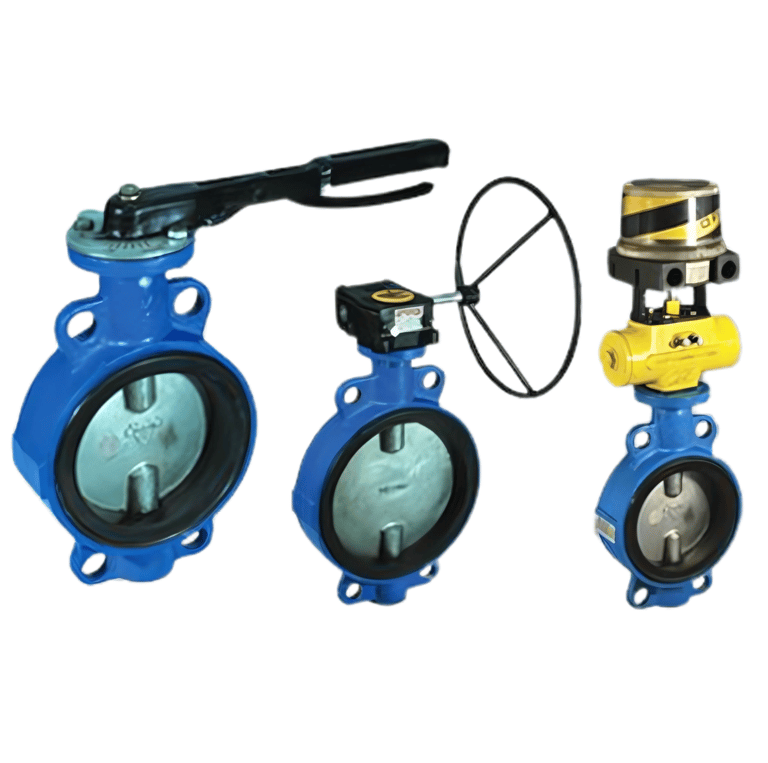

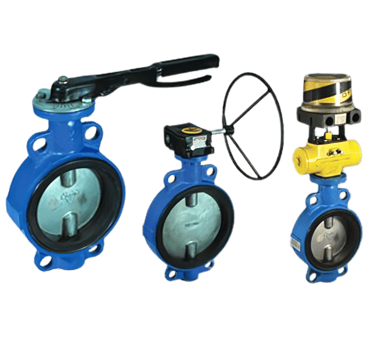

5. Operation : Hand lever for sizes from 40mm to 200mm Worm gear boxes for sizes from 40mm to 400mm Pneumatic/Electric actuator operation - opt
