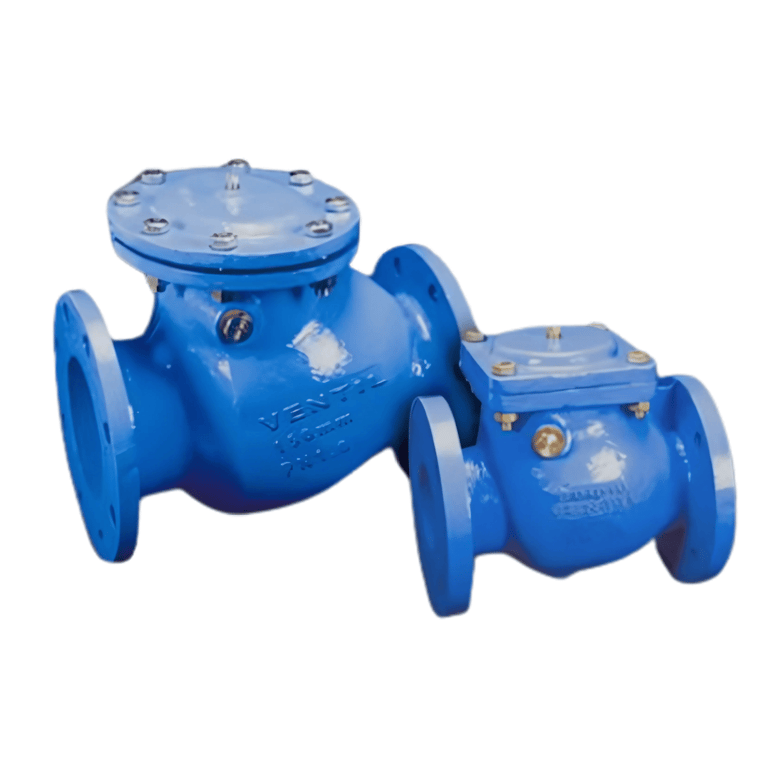

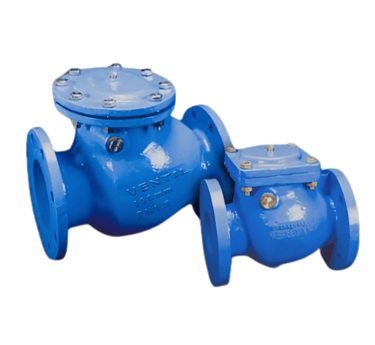

Swing Type Non Return Valve (Reflux)

Codes and Standards:

1. Design and Manufacturing : IS 5312 (Part 1): 2004

2. Valve face to face dimensions : IS 5312 (Part 1): 2004

3. Valve Inspection and Testing : IS 5312 (Part 1): 2004

4. Flange Standard : IS 1538/BS 10 Table D/E

5. Size Range : 50mm TO 600mm

Application:

The Cast Iron Swing check type Reflux Valves are strictly manufactured as per IS: 5312 Part-I. These Valves are generally used to maintain flow of water in only one direction and stop the return flow of water. They are self operative by pressure only. These valves are used in water main lines all over the world especially in hilly areas. These can be fitted in horizontal position.
